Amd radeon rx 9060 xt:
The AMD Radeon RX 9060 XT graphics card closes the brand’s entry -level. Furthermore, like the GeForce RTX 5060 Ti at Nvidia. Therefore, It is offered in two versions, 8 and 16 GB, we are testing here the version with the maximum video memory.
This model incorporates the various developments in RDNA 4 architecture. Moreover, namely Night Progress announced in Ray Tracing but also compatibility with FSR 4, UPSCALING based on AI according to AMD.
In this category at less than 400 euros. Therefore, the models are a little more versatile than the real first prices, without worrying the XX70 ranges. However,

. In addition,
Technical characteristics – Amd radeon rx 9060 xt
| Model | AMD Radeon RX 9060 XT (16 Go) |
|---|---|
| Maximum supported definition | 7680 x 4320 pixels |
| Chip name | Navi 44 |
| Architecture | RDNA 4 |
| Basic frequency | 2,53 Ghz |
| Flow processors | 2048 |
| Ray-tracing | Oui |
| Quantity of video memory | 16 Go |
| Memory interface | 128 bits |
| Memory type | GDDR6 |
| Engraving finesse | 4 nm |
| Sorties | HDMI 2.1b, DisplayPort 2.1a |
| Power connectors | 1 x 8 PCIe pin |
| Technology | AMD FreeSync |
| Pilots / Drivers | Link of pilots / drivers |
| Color | Gris |
| Consumption | 160 Watts |
| Recommended food | 450 Watts |
| Product sheet |
The graphics card was provided by Sapphire for the needs of this test.
Here we test the manufacturer’s Nitro+ model, an overclocking version compared to factory specificities. amd radeon rx 9060 xt Similarly, There is a basic clock frequency of 2,780 MHz (+250 MHz) and a boost frequency in play of 3,320 MHz (+190 MHz). Nevertheless, The rest of the technical sheet remains unchanged.
Configuration de test – Amd radeon rx 9060 xt
- Motherboard: Asus Tuf Gaming X870-Plus Wifi (BIOS 0830)
- Processor: AMD Ryzen 7 9800x3d (5.2 GHz. Consequently, 8 hearts, 16 threads)
- Refroidissement : Corsair iCUE LINK TITAN 360 RX RGB AIO
- Mémoire: 32 Go De Ram DDRM 6000 MHz (Corsair Dominator Platinum RGB)
- SSD: Samsung 990 Pro PCIE 4.0 NVME
- Alimentation : Corsair HX1500i 1500W
- Boitier : NZXT H7 Flow
- Software: Windows 11 24H2 (with AMD Adrenalin Edition pilots 25.6.1)

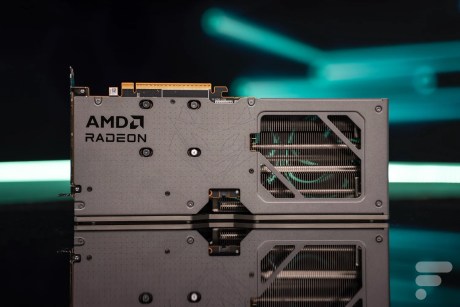

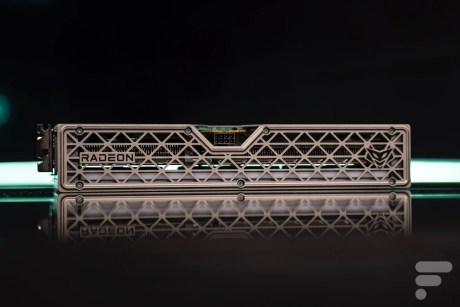

Design – Amd radeon rx 9060 xt
For this test, it is again a Nitro+ Overclocked model that was provided to us. Nevertheless, We thus find the design of the Radeon RX 9070 amd radeon rx 9060 xt XT already tested last March.

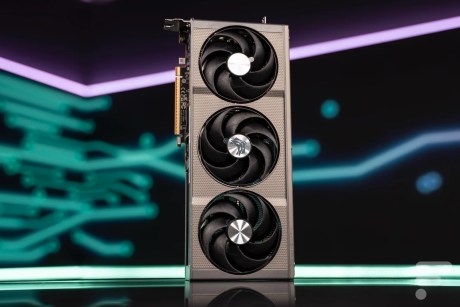

The card amd radeon rx 9060 xt is imposing for an entry -level. Therefore, with its length of 30 centimeters and its thickness of 3 slots. However, We are clearly in a mid -range size, obviously necessary to embark the Sapphire cooling system.

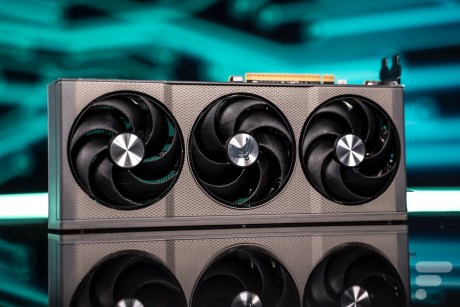

Three fans cool two radiators connected by 4 copper caps. However, all in a silver gray chassis in the form of a rectangular box.
Once installed. Meanwhile, the graphics card displays a robe front showing the Sapphire logo, the different radiators, but also an RGB led band crossing the model. Therefore, She will therefore not go unnoticed.
Performance in play – Amd radeon rx 9060 xt
Up to 39 % discount at Dell
Laptops, gaming screen, accessories … However, Summer sales started at Dell! We even selected for you the Dell Inspiron 15 laptop: on promotion at only 399 euros. with an AMD Ryzen 7, 16 GB of RAM and a 120 Hz screen.
It is AMD who says it: the Radeon RX 9060 XT is just as versatile. in 1080p (1920 on 1080p) as in 1440p (2560 on 1440p). This is often the full attraction of these XT (or Ti in competition) versions) for players looking for a. better versatile.
We therefore tested the amd radeon rx 9060 xt card to these two definitions in the face of direct competition. namely the RTX 5060 TI in 16 GB version, but also in front of the RTX 5060 or the B580 from Intel.
Synthetic benchmarks
Let’s start with a few synthetic tests to position the card in relation to the competition.

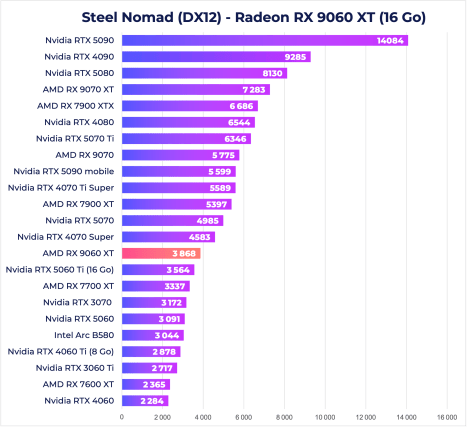

On the 3D benchmark Mark Steel Nomad. which focuses on a rendering in ratering on the API Dirextx 12, the RX 9060 XT is placed above the RTX 5060 Ti 16 GB RTX as well as the RX 7700 XT, but remains very behind compared to a RTX 4070 Super.

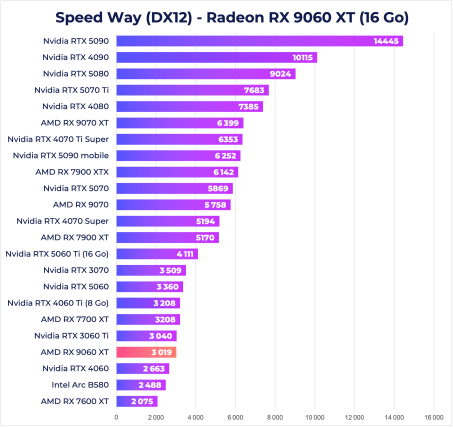

On the Mark Speed Way 3D test in Ray Tracing. the result is less brilliant while the card is placed at a RTX 3060 Ti and even below an RX 7700 XT.
Rasterisation
AMD has always been able to convince on raterization and this RX 9060 XT is no exception to the rule. In our amd radeon rx 9060 xt different tests. the card simply equalizes with the RTX 5060 Ti sold 80 euros more expensive, whether in 1080p or 1440p.
The two models are neck and neck, but Nvidia wins over her two flagship titles, Cyberpunk 2077 and Black myth Wukong.
However, there is no photo compared to RTX 5060, with which it is 25 to 45% faster for a price higher of 50 euros. Generational gains compared to the RX 7600 XT are 45% substantial on both definitions.
Ray tracing
Unsurprisingly. Ray Tracing performance is to the advantage of Nvidia, which is ahead of the RX 9060 XT on all tables, between 12 and 21% depending on the definition. If you favor games using this technology, Nvidia stays in front of this segment.
The progress is however dantesque compared to the RTX 5060. its 8 GB, which suffers from concerns of saturation of video memory amd radeon rx 9060 xt on certain titles (Alan Wake 2, Dragon Age: The Veilguard). Compared to the RX 7600 XT. the RX 9060 XT simply unlocks the game in Ray Tracing on this category at AMD and it is a good progress.
The FSR 4 gets to AI. but is still too rare
This year, AMD introduced the FSR 4, the new version of its Upscaling technology which is based this time on machine learning to rebuild a final image with a better rendering.
At a time when we write these lines, the FSR 4 is only available in 65 games. We are not talking about native integrations that are still rare. it is still necessary to activate it within the AMD control panel on FSR 3.1 compatible games.

.
Creative performance
In creative applications, we test as usual the two video editing amd radeon rx 9060 xt software that is Adobe Premiere Pro and Davinci Resolve Studio of Blackmagic.
amd radeon rx 9060 xt

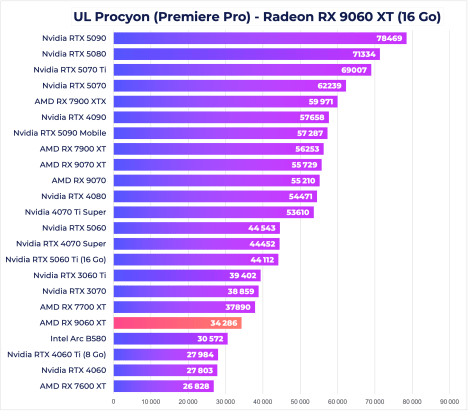

For Adobe’s software. within the Ult Procyon test tool, the Radeon RX 9060 XT is placed below an RX 7700 XT and a RTX 3070, at the bottom of the basket of the various GPUs tested in our columns for 4 years.

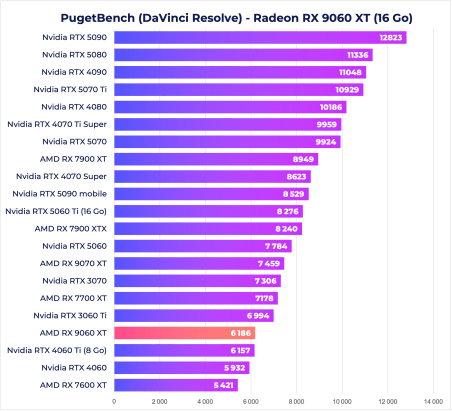

Same observation on Davinci Resolve Studio in Pugetbench. where the AMD card is placed at a RTX 4060 Ti and clearly e, below a RTX 3060 Ti. It is not a card that we will advise for possible creatives wishes to use it for processing. video made accelerated by the GPU.

.
Consumption and heating
On this overclocked version of the RX 9060 XT, the TGP exceeds the factory values of 160W when the card is requested in full load.
| Mode | Consumption (W) | Max temperature (° C) |
|---|---|---|
| Raster | 182 | 55 |
| Ray tracing | 182 | 55 |
| FSR4 Quality (1440p) | 181 | 82 |
| FSR4 + FG | 182 | 84 |
In our amd radeon rx 9060 xt measurements. the card caps at 183W with a maximum temperature of 54 degrees, especially in Ray Tracing games. It’s very simple, we are at the level of an RTX 5060 Ti 16 GB and very logically clearly above an RTX 5060.
Price and availability
The AMD Radeon RX 9060 XT in 16 GB version is sold at a recommended price of 369 euros commercially. The Sapphire Nitro+ Overclocké model that we tested is sold at a price oscillating between 340. 370 euros at the time of writing.
We are here on a price significantly lower than the GeForce RTX 5060 Ti (449 euros) for similar performance. even if AMD still accuses a delay on Ray Tracing. It is amd radeon rx 9060 xt still necessary to hope to find the card at its minimum floor price.
